Standard Comporision:
| Country | German | USA | Japan | China | Russia | British |
| Standard | DIN/Wr. | ASTM/AISI | JIS | GB | GOST | BS |
| Grade | 1.2738 | P20+Ni | * | * | * | * |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| 1.2738 | 0.35-0.45 | 0.20-0.40 | 1.30-1.60 | ≤0.030 | 0.05-0.10 | 1.80-2.10 | 0.15-0.25 | 0.90-1.20 |
| P20+Ni | 0.28-0.40 | 0.20-0.80 | 0.60-1.00 | ≤0.030 | ≤0.030 | 1.40-2.00 | 0.30-0.55 | 0.90-1.20 |
Available Size:
| Shape: | Available Status | Available size(mm) |
| Plate | Y | 12-245X2000-2300X3000-5800 |
| Flat bar | Y | 12-245X155-710X2000-2300 |
| Sheet | N | * |
| Block | Y | 250-800X610-1500X2500-5800 |
| Round bar | Y | Dia5-400X2500-5800 |
| Hexagonal bar | N | * |
Delivery Condition:
Hot rolled/Forged+Black surface/Peeled/Rough turned
Delivery time:
Warehouse regular stock sizes:3-7 days
Mill manufacture sizes:15-60 days
Brief introduction:

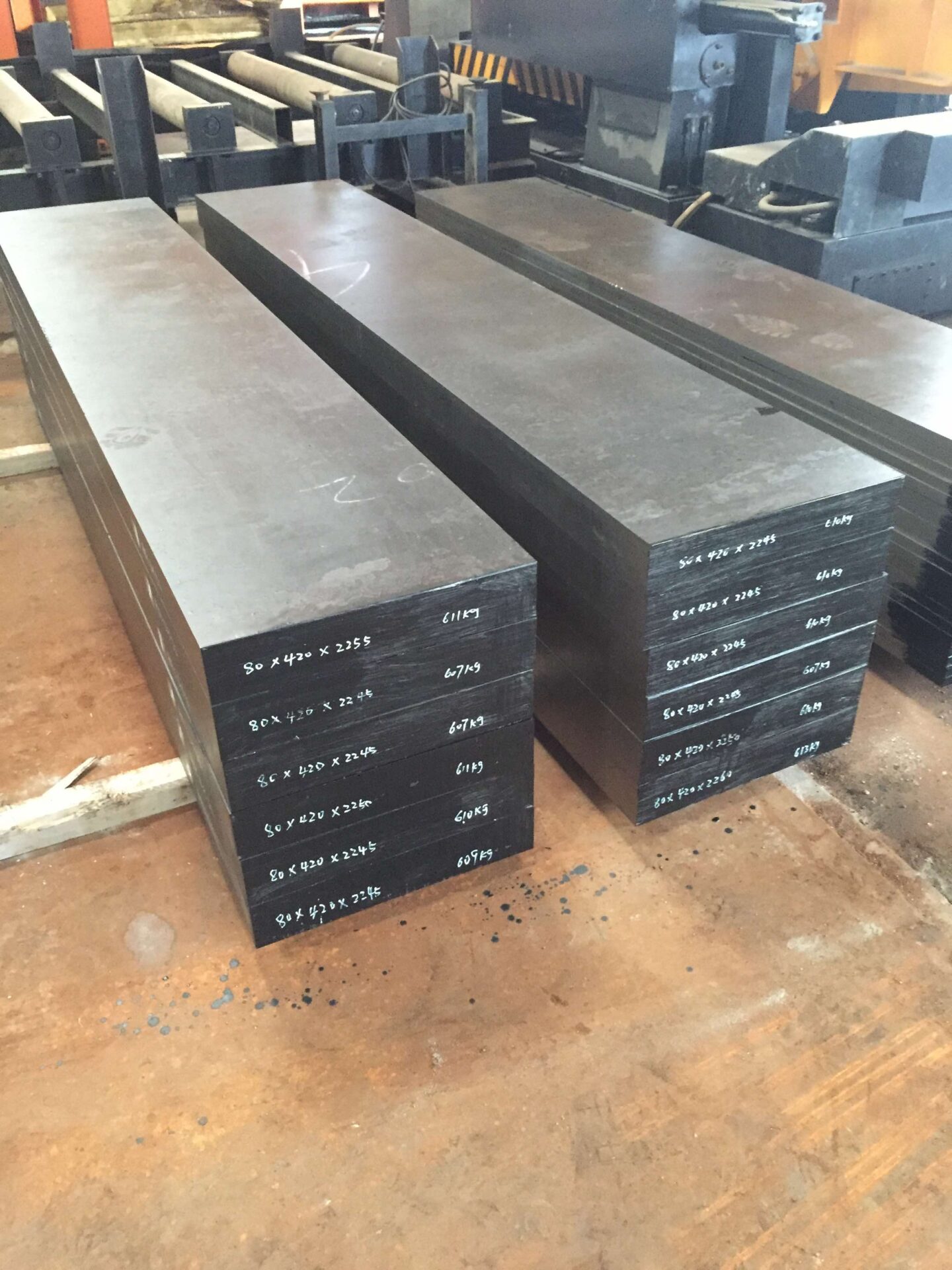

DIN 1.2738 steel plate is one kind of plastic mold steel, equivalent to AISI P20+Ni plastic mold tool steel. While Nickel, chromium and molybdenium are the alloying elements for hardness and toughness. 1.2738 tool steel is specially designed for plastic mold industry, especially for big steel mold parts.
Application:
Plastic mold making, automotive and automotive sub-industry, plastic molds of electronic devices
