Brief introduction:

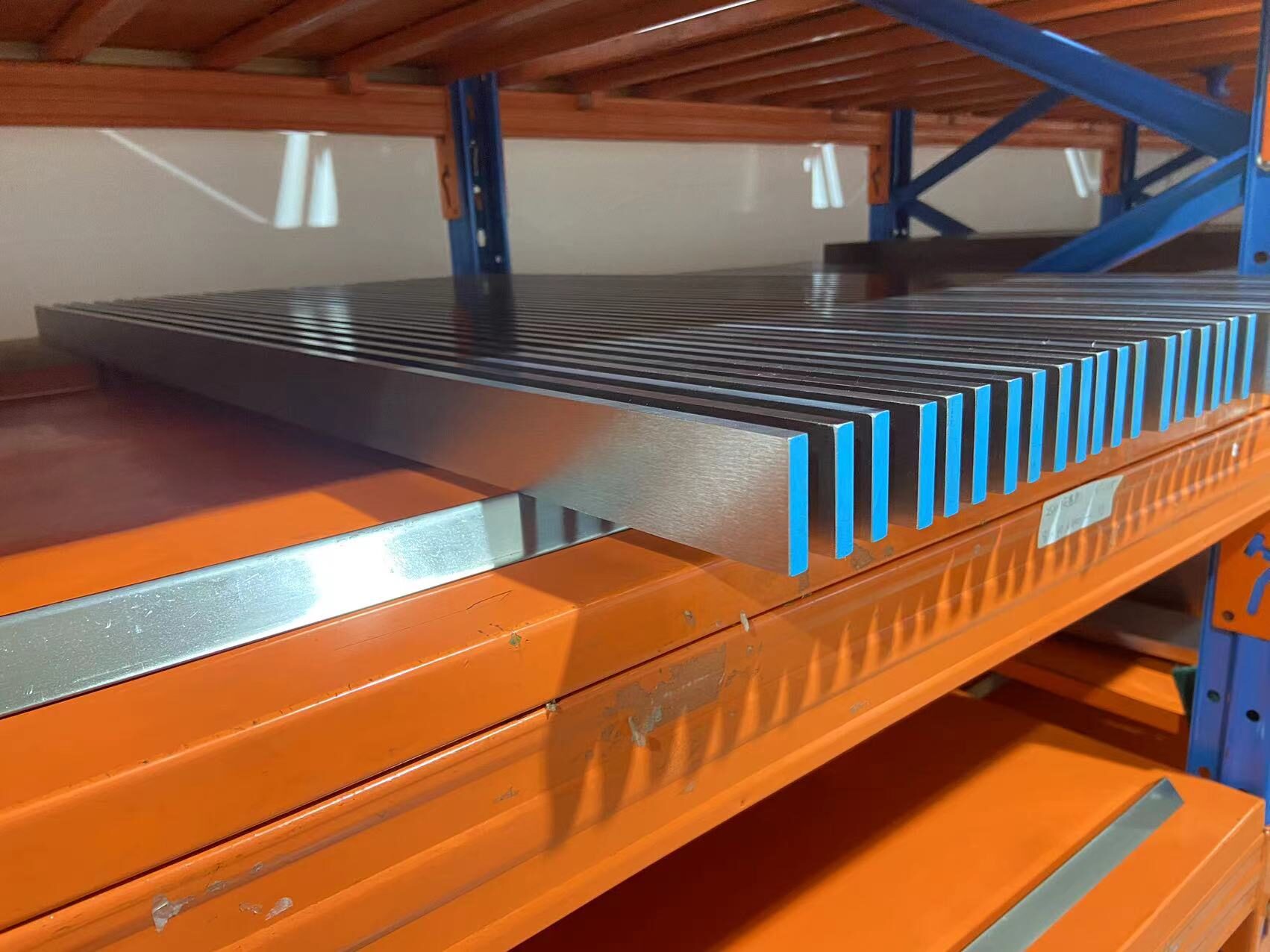

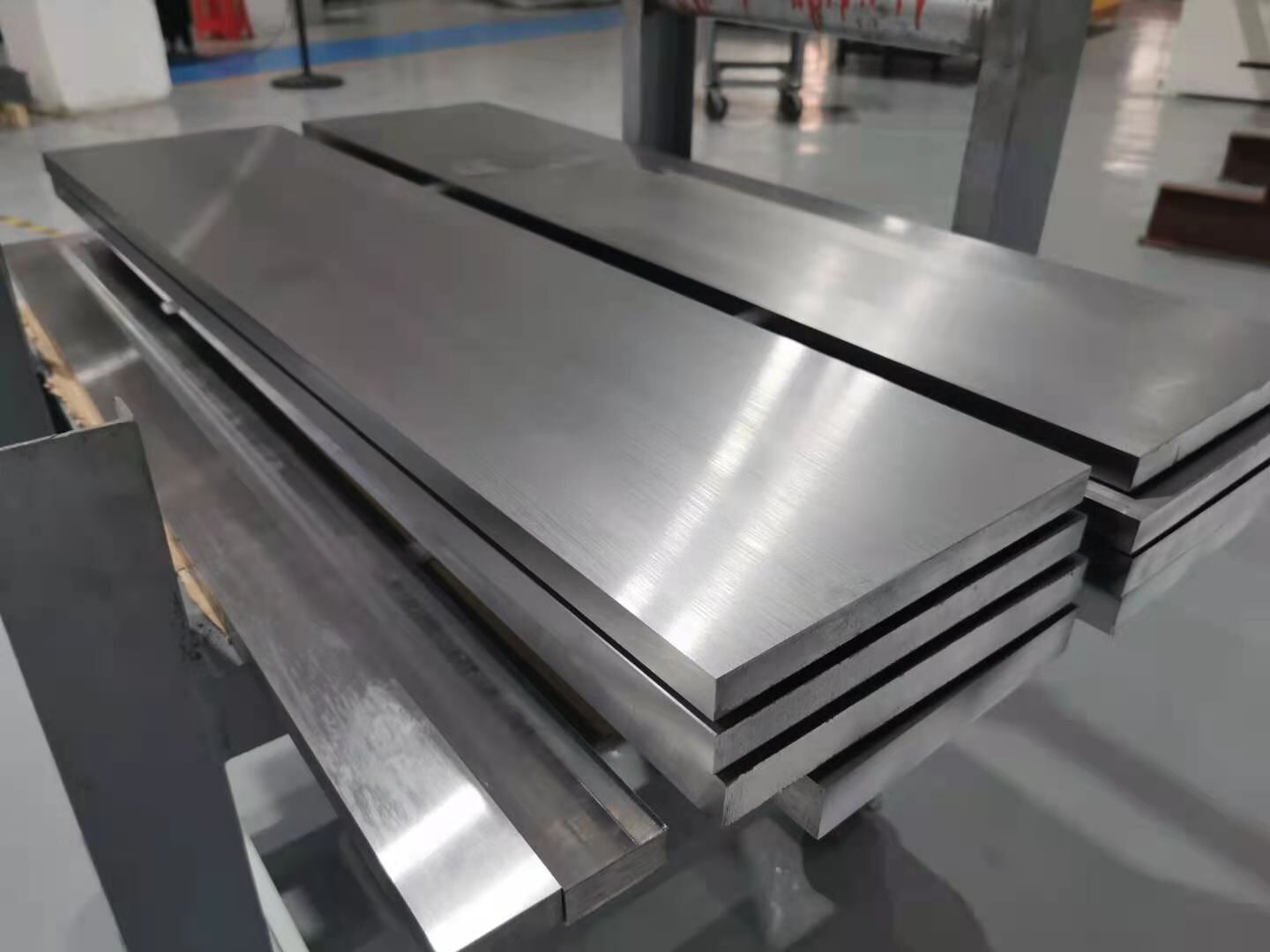

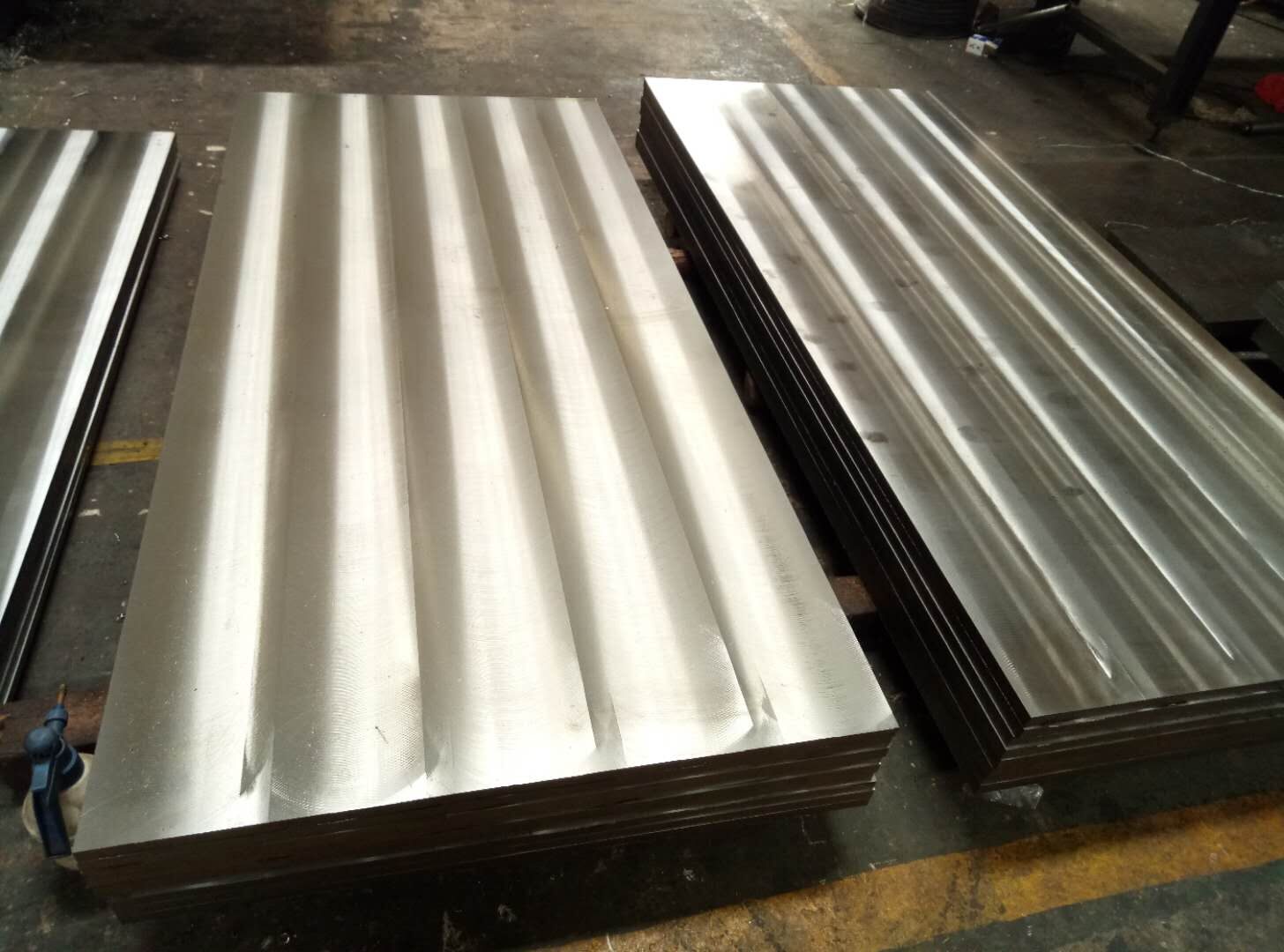

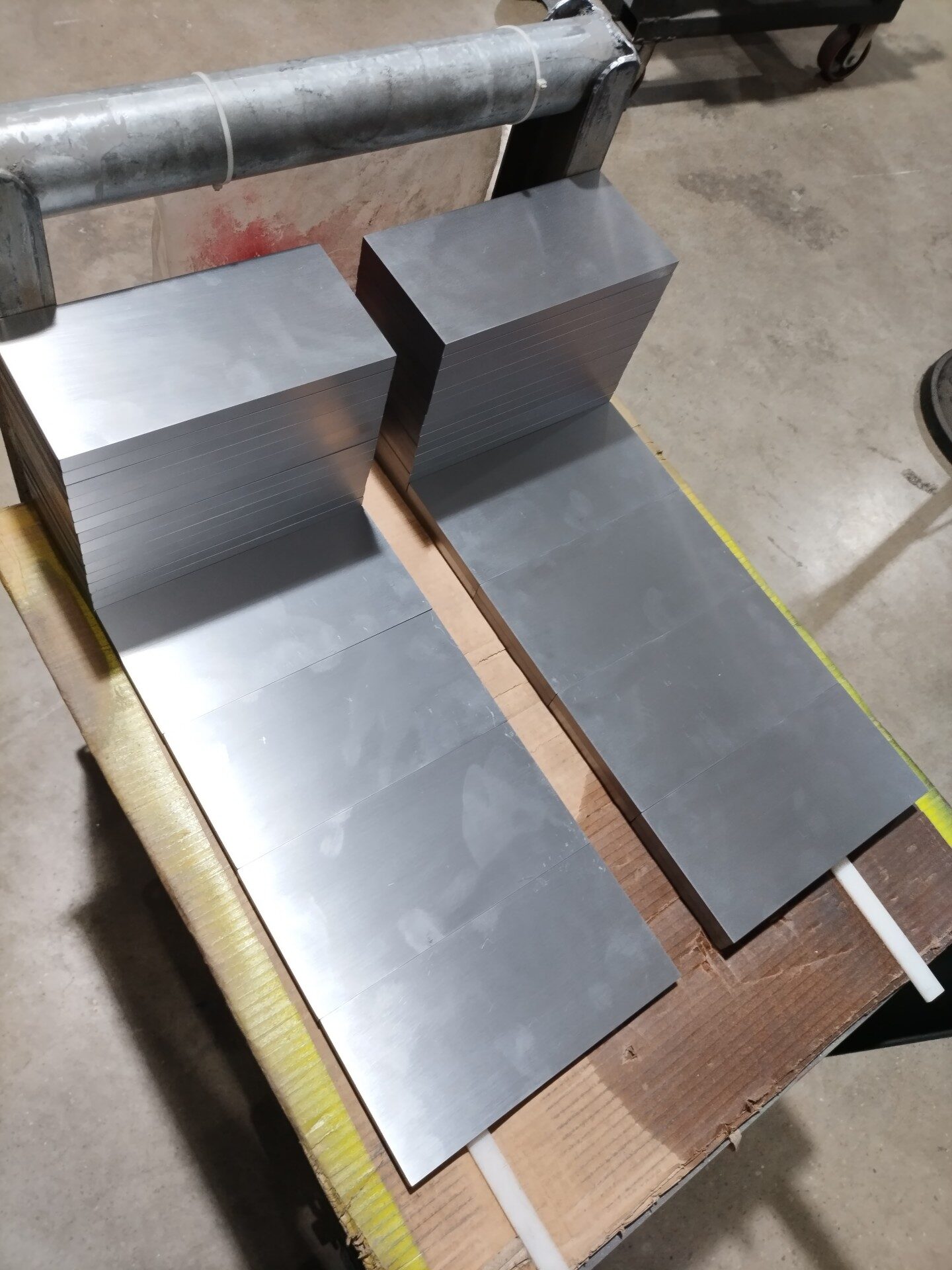

Milled plate/ flat bar is a machined plate/flat bar to be removed the blacksurface or oxide layer by CNC surface or side milling machine.
Main grades:
| DIN/WNr. | AISI | |||||
| 1.1730,1.2510,1.2083, 1.2379,1.2343,1.2312.,etc |
A2,D2,H13,S7,O1 | |||||
Delivery Condition:
Hot rolled/Forged+Milled/Milled+Ground
General tolerance for flat bar:
| Type | Execution | Thickness (mm) | Width(mm) | Length(mm) | Perpendicularity | Parallelism | Surface Roughness | Side Roughness |
| Milled | Precision milled | -0/+0.2 | -0/+0.4 | -0/+5 | 0.06/100 | 0.03/100 | Ra≤3.2 or Rz≤12.5 | Ra≤6.3 or Rz≤25 |
| Precision Ground Flat | Precision milled+Ground | -0/+0.05 | -0/+0.2 | -0/+5 | 0.02/100 | 0.02/100 | Ra≤1.6 or Rz≤6.3 | Ra≤3.2 or Rz≤12.5 |
| 5.Delivery time: | ||||||||
| Mill manufacture sizes:15-45 days |
Application:
Machining tools such as machine ways, gauges, punches and dies
Cutting tools such as knives, saws, hot work tools and lathe tools

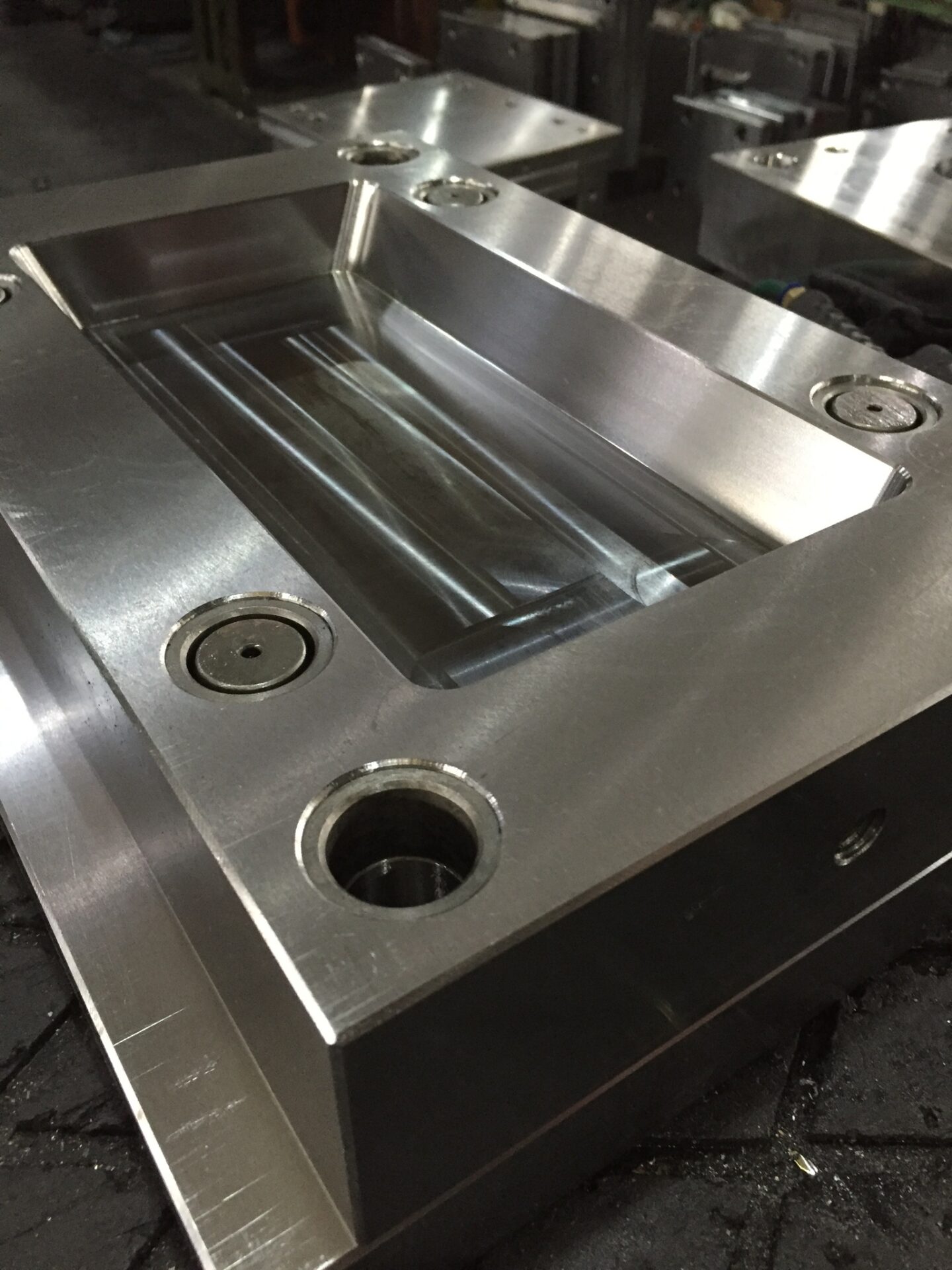

High temperature tools such as die casting and hot shear blades
Precision stainless tools such as knives and surgical equipment.
